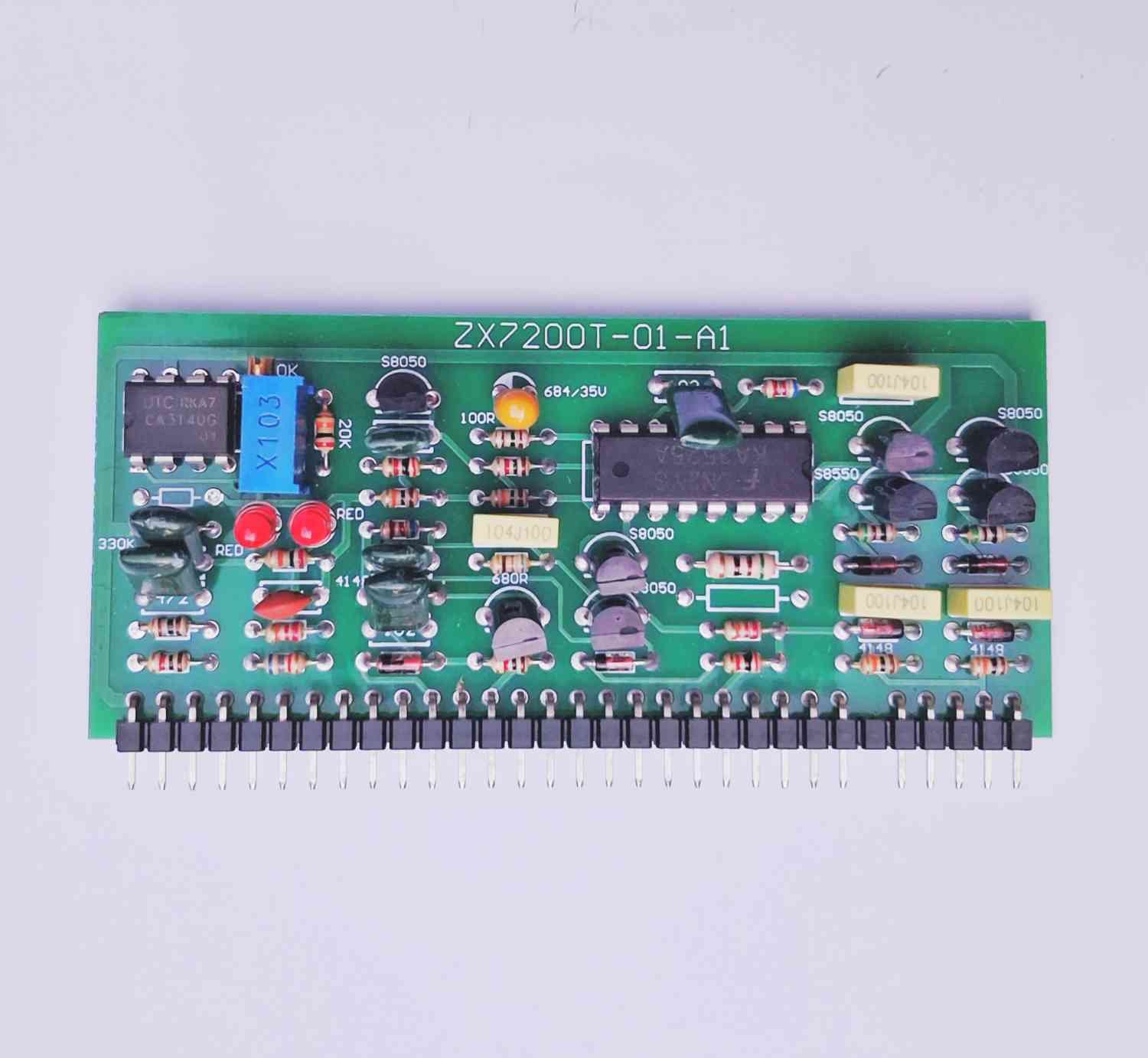

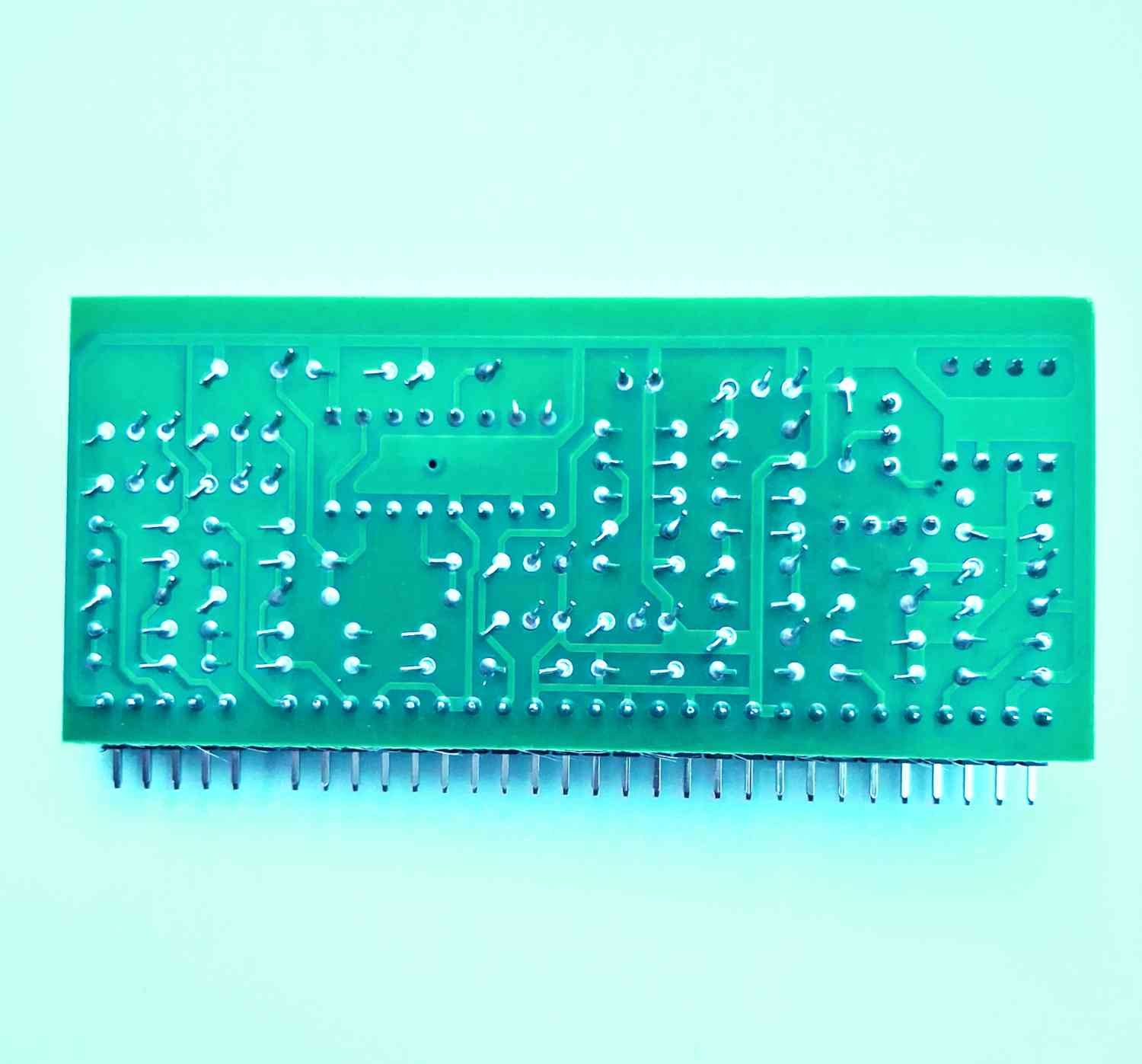

MOSFET Welding Machine Control Card – (ZX7200T)

ARC 200 Welding Machine Control Card (MOSFET) – Model ZX7200T-01-A1. MOSFET Welding Machine Control Card – (ZX7200T). Inverter welding machine control card.

Repair your welding machine with the ARC 200 MOSFET Welding Machine Control Card, designed for stable performance, high efficiency, and long-lasting durability. This ZX7200T-01-A1 control board is compatible with ARC/IGBT/MOSFET inverter welding machines and widely used in 160A, 180A, and 200A welding models.
Perfect replacement part for technicians and workshops—available now on ELCMart.

Key Features (Bullet Points)

• ✔ High-Quality ARC 200 Control Board – Specially designed for MOSFET welding machine systems
• ✔ Model: ZX7200T-01-A1 – Reliable and widely used model in inverter welders
• ✔ Supports MOSFET & IGBT Welding Machines – Ideal for ARC 160/180/200A machines
• ✔ Stable Output Performance – Ensures smooth arc, low noise, and reduced power loss
• ✔ Heavy-Duty PCB Construction – Made with premium-grade components for long life
• ✔ Overload & Short-Circuit Protection – Enhances safety and machine reliability
• ✔ Plug-and-Play Design – Easy to install and service-friendly layout
• ✔ Energy-Efficient Inverter Technology – Improved welding performance and reduced heat generation
• ✔ Perfect for Machine Repair & Replacement – Suitable for technicians, repair centers, and DIY welders

Technical Specifications

General Details

• Product Type: Welding Machine Control Board
• Model: ZX7200T-01-A1
• Category: ARC 200 MOSFET / IGBT Control Card
• Brand Compatibility: Universal for most Chinese ARC 200 welding machines

Electrical Specifications

• Input Voltage: 220V AC (Single Phase)
• Control Type: Inverter MOSFET / IGBT
• Output Current Control: 20A – 200A (Depending on welding machine)
• Switching Frequency: High-frequency inverter-based
• Protection Features:
  • Overcurrent protection
  • Overload protection
  • Short-circuit protection
  • Temperature protection

Board Construction

• PCB Type: Multi-layer high-temperature resistant
• Components:
  • High-quality MOSFET/IGBT drivers
  • Heavy-duty relays
  • Precision resistors & capacitors
  • Heat-resistant connectors
• Cooling Support: Works with fan-based cooling

Compatibility

• ARC 200 MOSFET welding machines
• ARC 160 / 180 / 200 inverter welders
• MIG / MMA / Stick welding machines using ZX7200T-01-A1 layout
• Suitable for most Chinese welding machine brands (OEM type)
