KT241 40Amp 24V Relay. 40A 24V Relay. 24V 40Amp Relay Price. stabilizer relay. stabilizer relay prce. 40 amp Stabilizer Relay price.
- Relay Coil Voltage: 24V
- Relay Amp: 40A
- Use In stabilizer
- New Relay
- Quantity: 1Pc

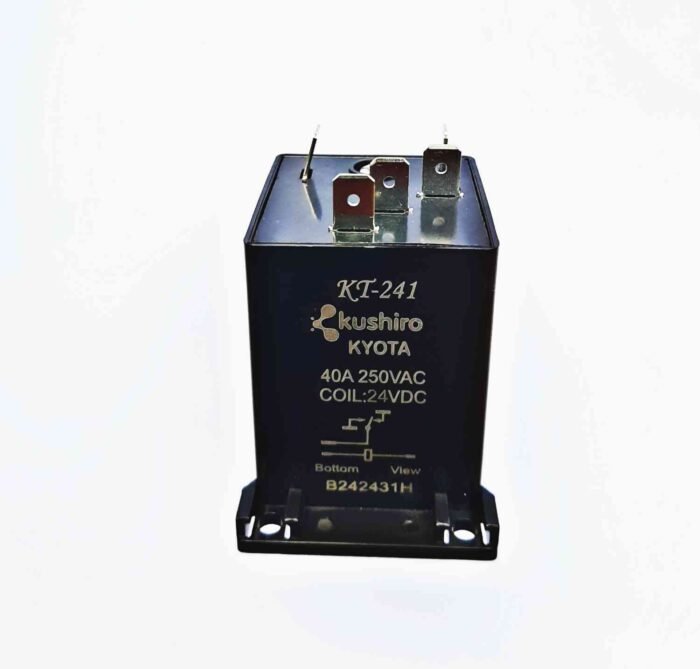

KT241 40Amp 24V Relay – Stabilizer Heavy Duty Power Relay
The KT241 40A 24V Relay is a high-performance, heavy-duty relay widely used in voltage stabilizers, inverters, UPS systems, battery chargers, and industrial control circuits. Designed for long-life operation and reliable switching, this relay ensures excellent load handling and stable performance in demanding electrical applications.
Key Features
- Heavy-duty 40 Amp current capacity – perfect for high-load switching
- 24V DC coil voltage for safe and stable operation
- Ideal for Voltage Stabilizers & Servo Stabilizers
- High-performance copper contacts for superior conductivity
- Durable, long-life relay construction suitable for continuous operation
- Low noise operation with fast switching response
- Compact size and easy PCB or screw-type mounting
- Widely used in home, commercial & industrial power equipment
Technical Specifications
| Specification | Details |
|---|---|
| Model | KT241 Relay |
| Type | Power / Stabilizer Relay |
| Contact Rating | 40A |
| Coil Voltage | 24V DC |
| Contact Form | SPDT / DPDT (depends on variant) |
| Operating Voltage Range | 19V – 28V DC |
| Coil Resistance | 320 – 370 Ohm (Approx.) |
| Switching Voltage | AC 250V / DC 30V (max load switching) |
| Material | Copper Contact |
| Insulation Resistance | ≥ 100MΩ |
| Mechanical Life | 1,000,000 operations |
| Electrical Life | 100,000 operations (under rated load) |
| Application Area | Stabilizer, UPS, Inverter, Control Panel, Solar Systems |
| Mounting Type | PCB / Screw terminal (based on model) |
Applications
- Voltage Stabilizers (1KVA – 10KVA)
- Servo Stabilizer & Automatic Voltage Controller (AVC)
- Inverter / UPS / Solar Inverter
- Industrial automation panels
- Battery chargers and power supply systems
- AC motor and compressor switching circuits
Why Choose KT241 40A Relay?
✔ High load capacity
✔ Long service life
✔ Reliable and stable switching performance
✔ Suitable for heavy-duty electrical protection systems
KT241 Relay 40A, 24V stabilizer relay, 40Amp power relay, KT241 relay for inverter, Automatic voltage stabilizer relay, High load copper relay.
