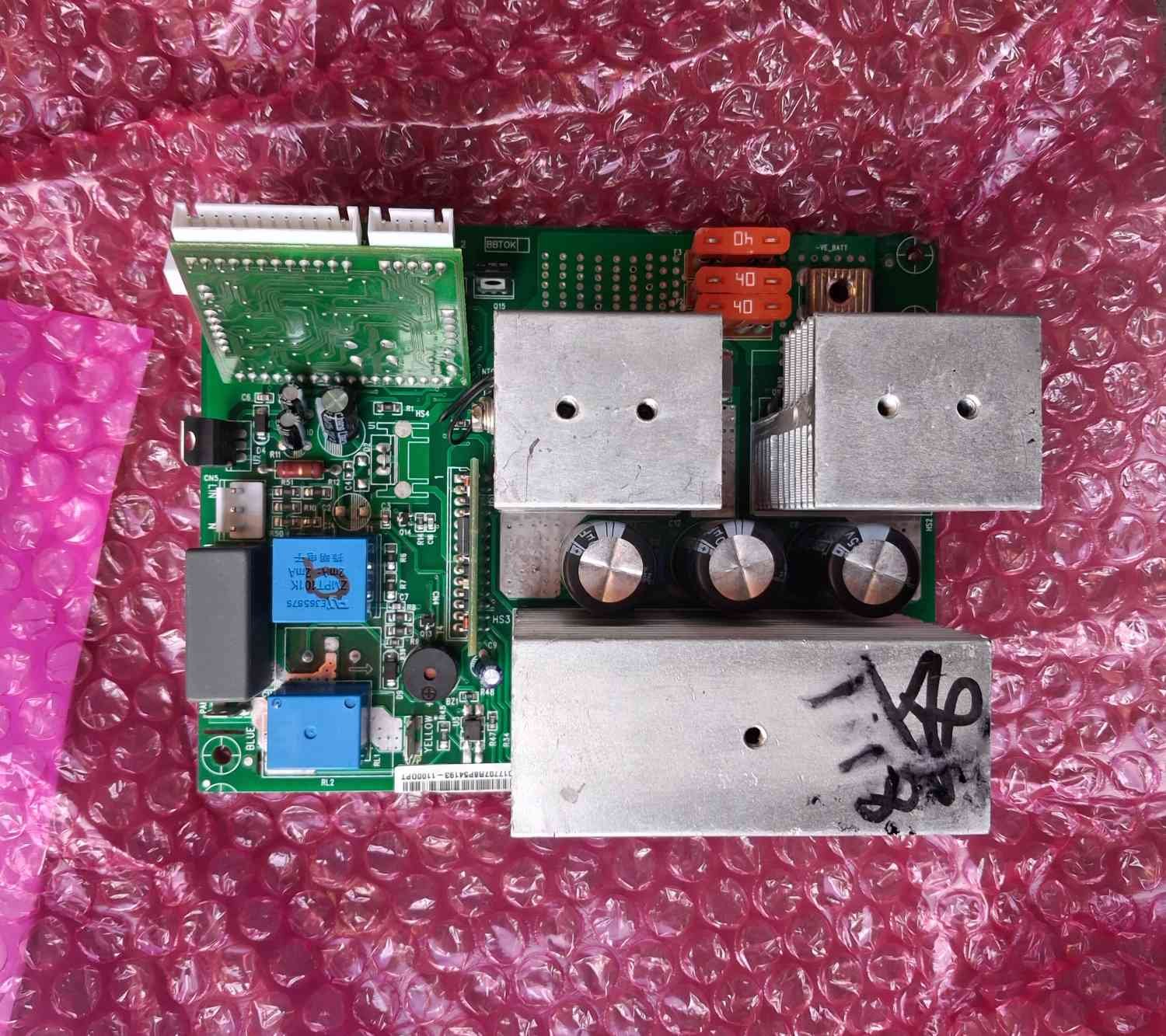

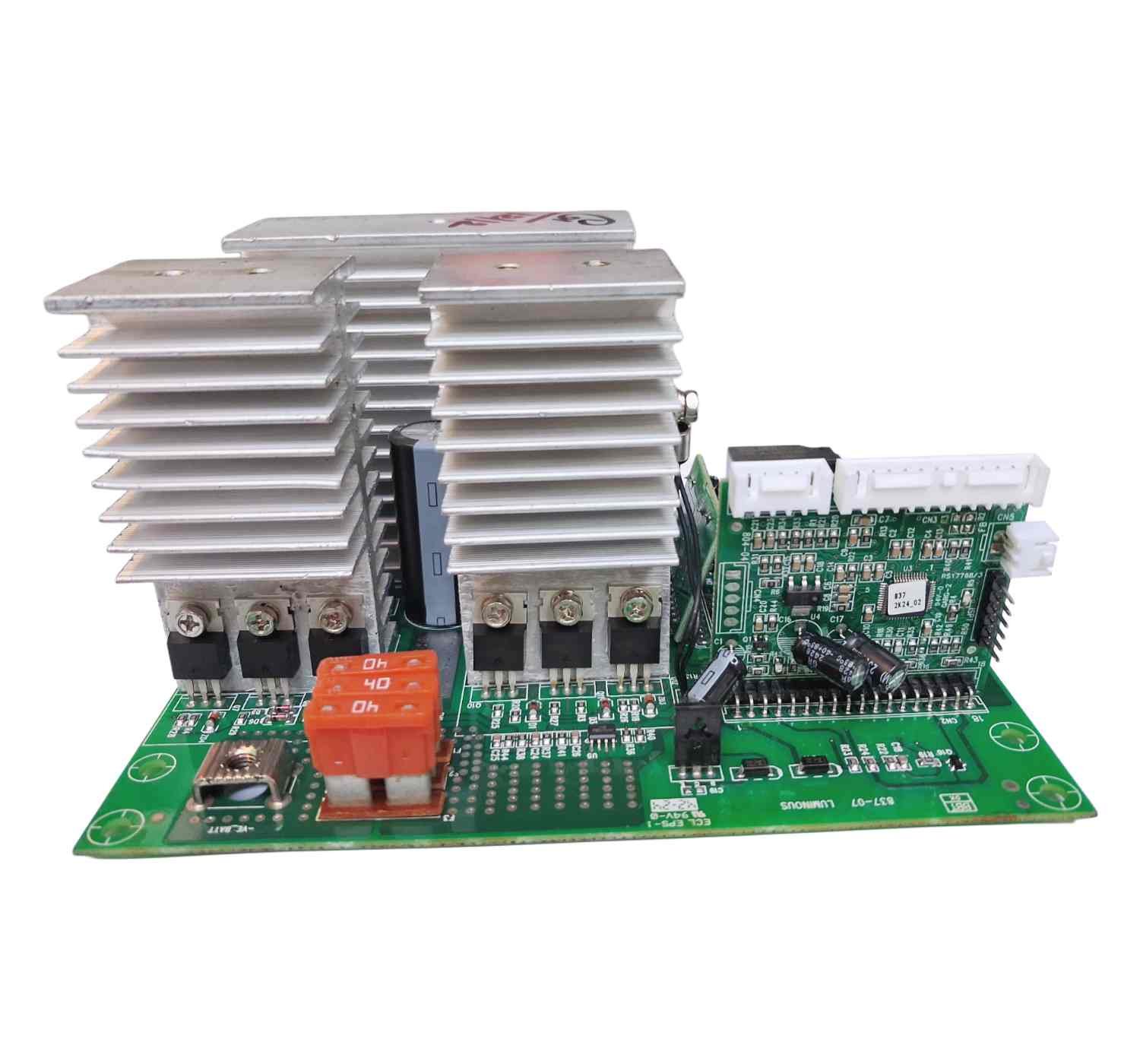

Luminous Optimus 2300 Inverter PCB Board

Luminous Optimus 2300 Inverter PCB Board – Original Pure Sine Wave 24V (2000VA / 1600W) – Full Description

Upgrade or repair your inverter with the 100% Original Luminous Optimus 2300 Inverter PCB Board, designed for high-performance power backup systems. This Pure Sine Wave 24V PCB ensures smoother output, better appliance protection, and long product reliability. Ideal replacement for Luminous Optimus 2300 / 2000VA / 1600W inverter models.

Perfect for technicians, repair shops, and DIY users looking for a genuine, durable, and efficient inverter control board.

Key Features (Bullet Points)

• ✔ Original Luminous PCB Board – Direct replacement for Luminous Optimus 2300
• ✔ Pure Sine Wave Output – Safe for all sensitive appliances like PCs, TVs & refrigerators
• ✔ 24V System Compatibility – Works with 24V battery setups
• ✔ Supports 2000VA / 1600W Load – Ensures stable backup performance
• ✔ High Conversion Efficiency – Reduced power loss & enhanced battery life
• ✔ Advanced Protection Circuitry – Overload, Overheat & Short-circuit protection
• ✔ Microcontroller-Based Design – Improves accuracy & inverter stability
• ✔ Premium Build Quality – Factory-tested & long-lasting components
• ✔ Easy Installation Fitment – Direct plug-and-play PCB with accurate connectors
• ✔ Best for Repair & Replacement – Restores inverter functionality like new

Full Specifications

Electrical Specifications

• Model Compatibility: Luminous Optimus 2300
• Type: Pure Sine Wave Inverter PCB
• Voltage Rating: 24V DC
• Output Capacity: 2000VA / 1600 Watts
• Waveform: Pure Sine Wave
• Input Battery Type: Lead-acid / SMF / Tubular
• Charging Current: Supports standard Optimus 2300 charging parameters
• Efficiency: High energy conversion, low heat generation

Protection Features

• Overload Protection
• Short Circuit Protection
• Over-Temperature Protection
• Battery Deep Discharge Protection
• Reverse Polarity Protection
• Intelligent Thermal Management

Build & Design

• Microcontroller-based control system
• Heavy-duty MOSFET/IGBT components
• High-quality PCB with long life
• Factory-programmed firmware
• Proper connector alignment for easy installation

Compatibility

• Works with Luminous Optimus 2300 inverter series
• Suitable for 2000VA / 1600W inverter rating
• Ideal for home, shop & office UPS systems

Luminous Optimus 2300 PCB, Pure Sine Wave 24V PCB, 2000VA 1600W inverter board, original Luminous PCB, inverter repair board, Luminous inverter spare parts.

Important Note

✅ Purchase and installation should be done only by technical persons.
❌ Wrong installation may damage the PCB or inverter.
