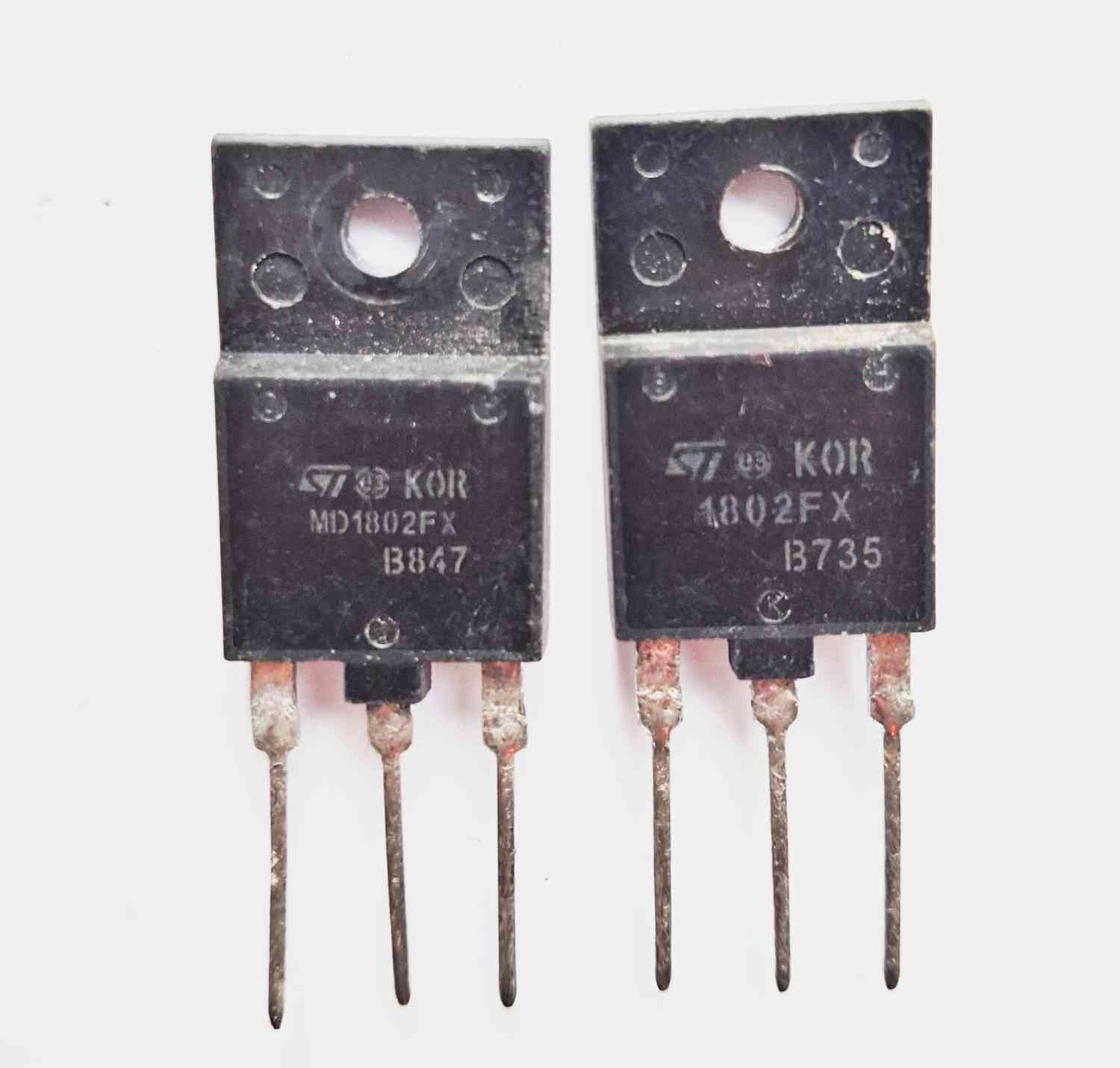

MD1802FX NPN power transistor – Refurbished

MD1802FX NPN power transistor – Refurbished. 1802FX NPN transistor. 1802 Transistor. MD1802FX STMicroelectronics.

• Horizontal deflection output for TV
  ■ Switch mode power supplies for CRT TV
• Collector-emitter voltage: 1500V
• Collector-emitter voltage: 700V
• Collector-base voltage: 9V
• Collector current: 10A

Download MD1802FX Transistor Download PDF.

MD1802FX NPN Power Transistor – Refurbished | High-Performance Power Switching Component

The MD1802FX is a high-quality NPN power transistor designed for demanding power switching and amplifier applications. This refurbished unit is fully tested, stable, and ideal for repairing inverters, UPS systems, SMPS units, solar devices, and other high-power electronic circuits. Perfect for technicians looking for a reliable and cost-effective replacement transistor.

Key Features

• ✔ Refurbished & Fully Tested – Ensures stable performance and long life.
• ✔ High Power Switching Capability – Suitable for heavy-duty applications.
• ✔ NPN Silicon Power Transistor – Designed for efficiency and reliability.
• ✔ Excellent Thermal Stability – Works efficiently under high temperatures.
• ✔ Widely Used in UPS, Inverters, SMPS & Solar Systems
• ✔ Cost-Effective Replacement Component

Technical Specifications

• Transistor Type: NPN Power Transistor
• Model: MD1802FX
• Collector-Emitter Voltage (VCEO): 200V (typical)
• Collector-Base Voltage (VCBO): 230V
• Emitter-Base Voltage (VEBO): 5V
• Collector Current (IC): Up to 15A (depending on application)
• Power Dissipation: High (suitable for heat-sink mounting)
• Package Type: TO-247 or Equivalent
• Usage: Power Supply, UPS, Inverter, SMPS, Solar Inverter Driver Boards
• Condition: Refurbished & Tested

Applications

• UPS & Inverter PCB Repair
• SMPS Power Supplies
• Solar Inverters
• Motor Drive Circuits
• High-Power Switching Circuits
