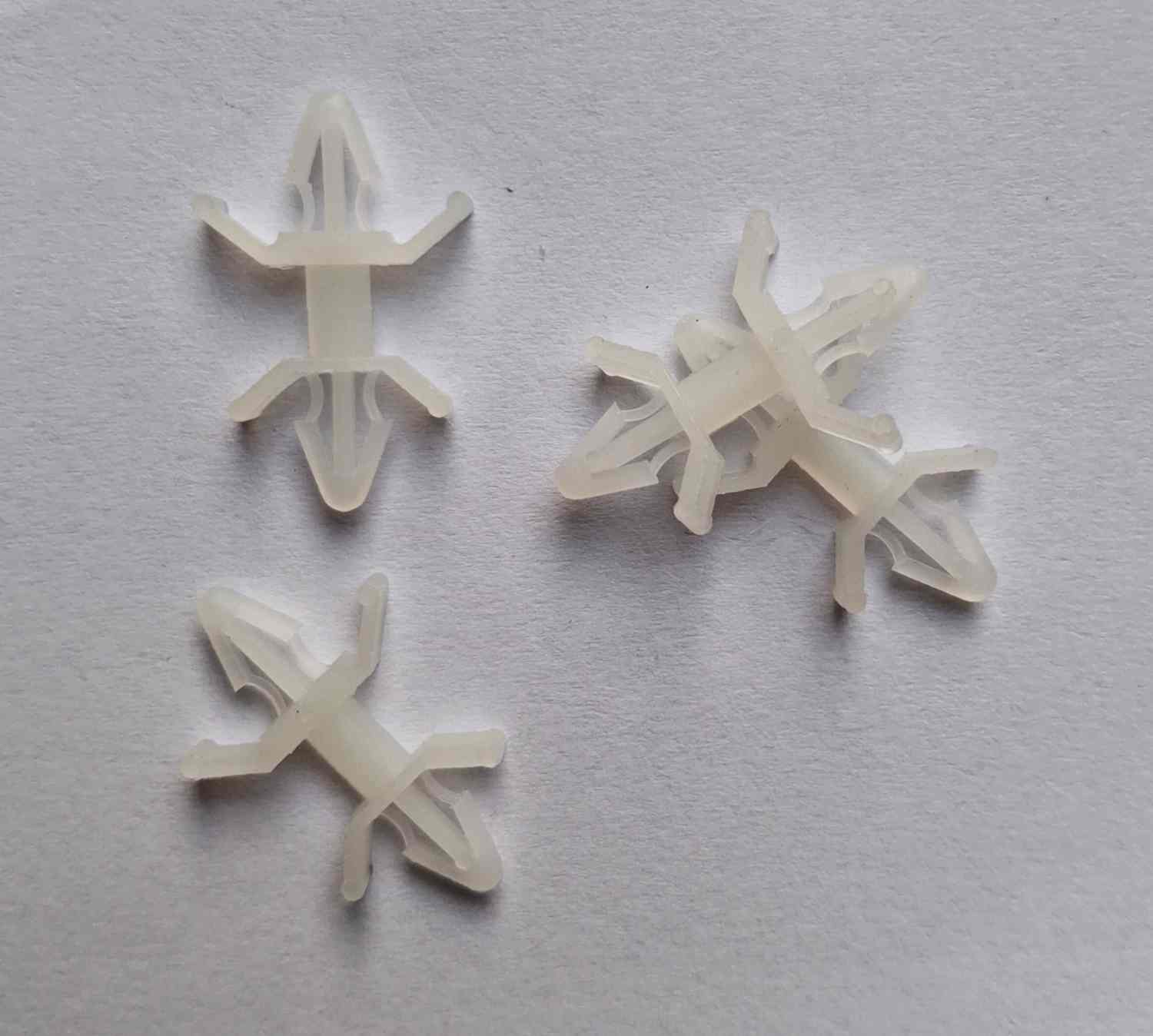

Nylon PCB Lock Dual Support Spacer (Pack of 50pcs) – PCB Support Card Lock

The Nylon PCB Lock Dual Support Spacer is a useful electronic hardware component designed to securely support, separate, and insulate printed circuit boards (PCBs) inside electronic equipment and enclosures. These locking PCB supports feature a nylon construction that provides electrical insulation while helping keep the circuit board firmly positioned.

This PCB support spacer and card lock is suitable for mounting and protecting PCBs from contact with metal surfaces, reducing the risk of short circuits and helping maintain a clean and organized internal assembly. The dual support locking design allows the PCB to be held securely without requiring complicated mounting arrangements.

Key Features

• Product Type: Nylon PCB Lock Support Spacer
• Pack Quantity: 50 Pieces
• Material: Nylon
• Design: Dual Support / Locking Type
• Function: PCB supporting, spacing and locking
• Insulation: Electrically insulating material
• Application: PCB mounting and circuit board support
• Installation: Easy push-lock style mounting
• Purpose: Keeps PCB securely positioned inside an enclosure
• Durability: Lightweight and suitable for general electronic assembly
• Maintenance: PCB can be supported and positioned without metal mounting hardware
• Ideal For: Electronics repair, DIY projects, PCB assembly and equipment manufacturing

Full Product Specifications

Applications

These nylon PCB support spacers can be used in many electronics and electrical applications, including:

• Printed circuit board mounting
• Electronic control boards
• Power supply PCB assemblies
• Inverter and UPS circuit boards
• DIY electronics projects
• LED driver boards
• Industrial control equipment
• Electronic instrument assemblies
• PCB repair and replacement work
• Plastic and metal electronic enclosures
• Circuit board isolation from chassis surfaces

Advantages of Nylon PCB Supports

• Helps maintain a fixed distance between the PCB and enclosure.
• Provides electrical insulation between the circuit board and mounting surface.
• Locking mechanism helps reduce unwanted PCB movement.
• Lightweight nylon construction is convenient for electronic assemblies.
• Useful for clean and professional PCB installation.
• Suitable for replacement of damaged or missing PCB mounting supports.

Installation Information

The PCB locking support spacer is generally fitted through a suitable mounting hole in the PCB and secured to the mounting surface or chassis. Before installation, make sure the PCB hole diameter, support height, mounting method, and board thickness are compatible with the product.

Important Buying Information

• Please check the support height, locking mechanism, PCB hole size, and dimensions before ordering.
• Actual color and dimensions may vary slightly depending on the manufacturing batch.
• The exact height and hole size should be confirmed from the product image or supplied specification before installation.
• Use the correct size support for your PCB to ensure a secure fit.
• Pack contains 50 pieces, unless the selected product option states otherwise.
