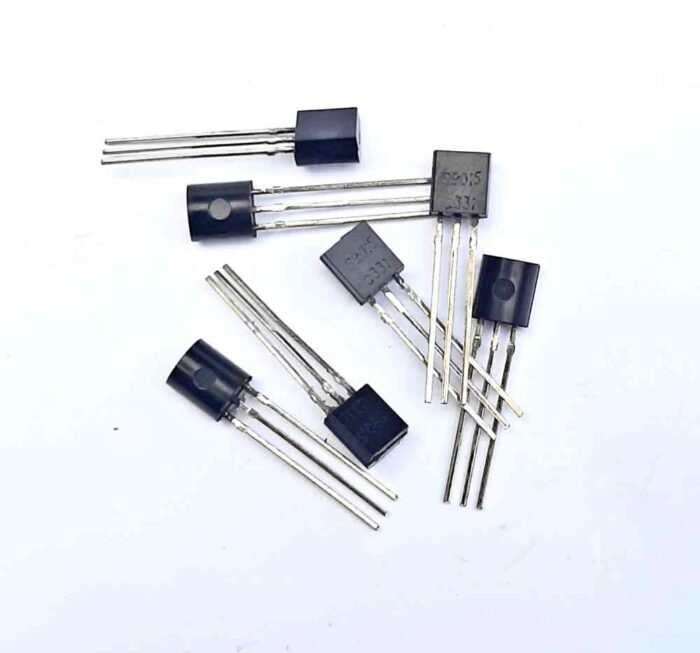

S9015 Transistor PNP – 10PCs

S9015 Transistor PNP – 10PCs. S9015 PNP Transistor.

• Type: PNP transistor
• Package Type: TO-92 (a small, three-terminal package)
• Maximum Collector-Base Voltage (Vcbo): -50V
• Maximum Collector-Emitter Voltage (Vceo): -50V
• Maximum Emitter-Base Voltage (Vebo): -5V
• Maximum Collector Current (Ic): -150mA
• DC Current Gain (hfe): 70 to 700 (typically around 120)
• Power Dissipation (Pd): 400mW
• Transition Frequency (fT): 70MHz (typical)
• Operating Temperature Range: -55°C to +150°C
