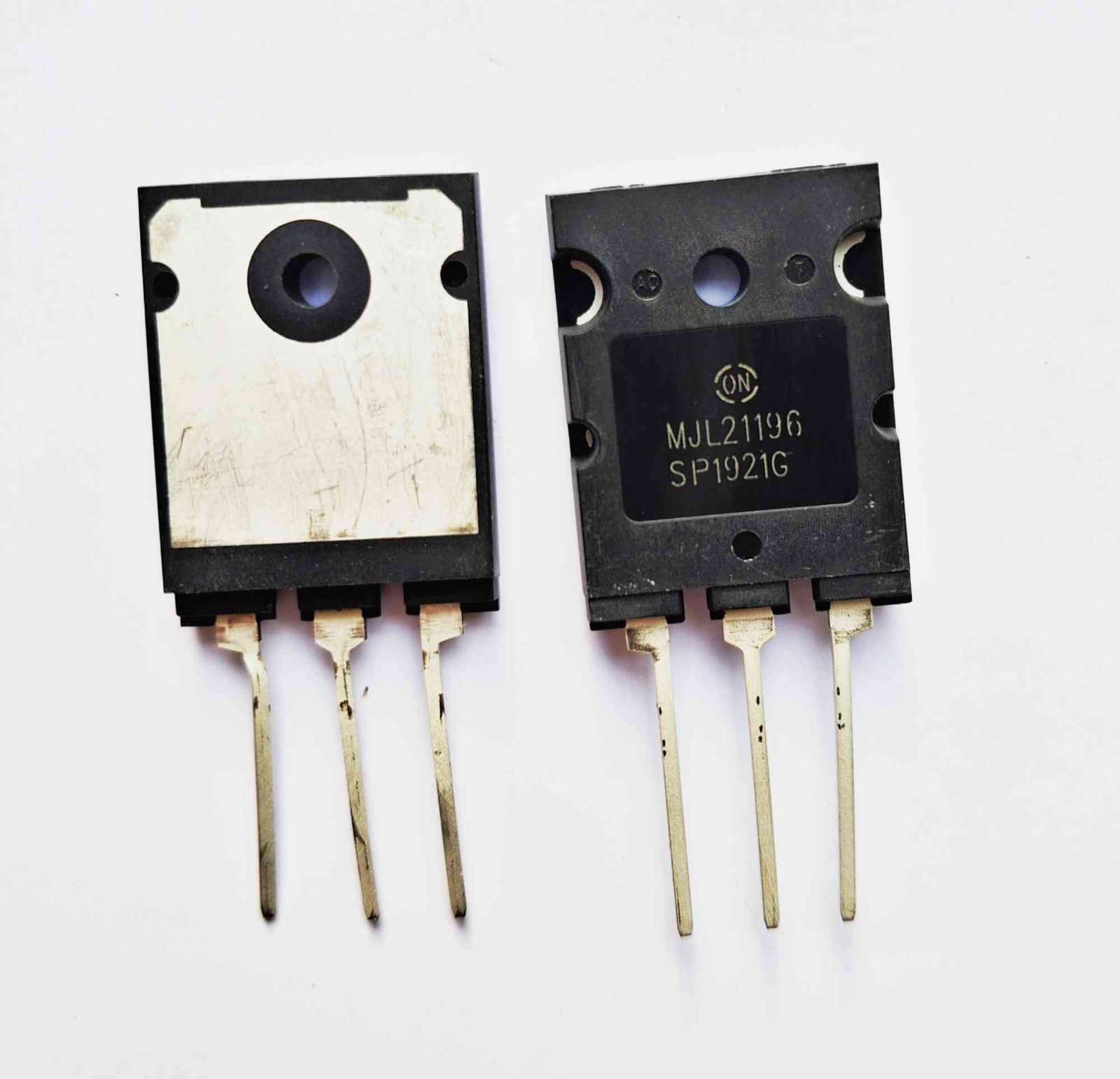

MJL21196 Transistor NPN Original ONSEMI

MJL21196 Transistor NPN Original ONSEMI. MJL21196 Transistor. MJL21196 Transistor Price.

• Collector−Emitter Voltage: 250V
• Collector−Base Voltage: 400V
• Emitter−Base Voltage: 5V
• Total Power Dissipation: 200W

Download MJL21196 Transistor datasheet PDF

MJL21196 NPN Transistor – Original ON Semiconductor | High-Power Audio Output Transistor

The MJL21196 is a high-power NPN bipolar junction transistor designed by ONSEMI for professional audio, power amplifier stages, and high-current switching applications. With exceptional linearity, low distortion, and rugged construction, this transistor is ideal for audiophile-grade amplifiers, industrial power circuits, and high-load drivers.
Recommended for experienced technicians and electronics professionals.

🔧 Key Features

• Original ONSEMI MJL21196 – high-reliability and long service life
• NPN Power Transistor with high current & voltage handling
• Excellent Safe Operating Area (SOA)
• Low distortion for high-fidelity audio amplifier designs
• High gain stability at elevated temperatures
• Designed for linear and switch-mode high-power applications
• Durable TO-264 package for optimal heat dissipation
• Suitable only for technical users / professional repair engineers

📘 Electrical Specifications (Full Specs)

📦 Applications

• High-power audio output amplifiers
• Home theater amplifiers, PA systems, Hi-Fi systems
• High-current power drivers
• Industrial power stages
• Replacement for damaged/failed amplifier transistors
• Use in repair, R&D, and upgrade projects

⚠️ Important Note

This product is recommended only for technical persons, engineers, and experienced repair technicians. Requires correct biasing, heat sink design, and power handling knowledge.
