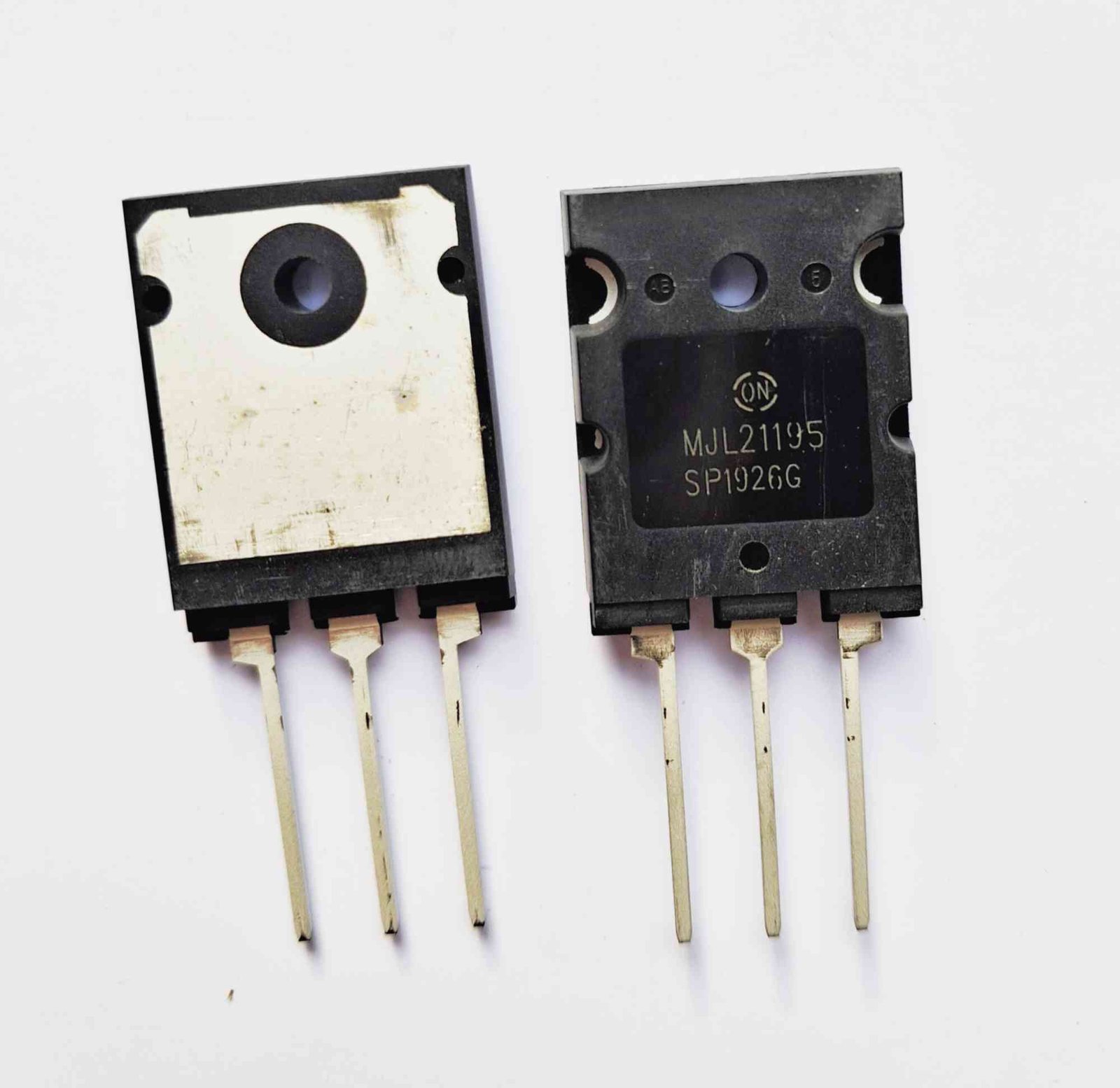

MJL21195 Transistor PNP Original ONSEMI

MJL21195 Transistor PNP Original ONSEMI. MJL21195 Transistor. MJL21195 Transistor Price.

• Collector−Emitter Voltage: 250V
• Collector−Base Voltage: 400V
• Emitter−Base Voltage: 5V
• Total Power Dissipation: 200W

Download MJL21195 Transistor datasheet PDF

MJL21195 Transistor PNP Original ONSEMI – Product Description

The MJL21195 is a high-power PNP bipolar junction transistor from ON Semiconductor (ONSEMI), designed for audio amplifier stages, power supplies, and high-current switching applications. Known for its excellent linearity, high gain, and rugged reliability, this transistor is widely used in professional audio equipment, UPS systems, industrial controls, and high-power output stages.

With its 250V voltage rating, 16A collector current, and 200W power dissipation, the MJL21195 ensures superior performance, stability, and long operating life—making it a trusted choice for technicians and engineers.

Key Features

• Original ON Semiconductor (ONSEMI) high-power PNP transistor
• Ideal for high-quality audio amplifier output stages
• High Collector–Emitter voltage (VCEO) – 250V
• High Collector Current – 16A continuous
• Excellent DC current gain (hFE) and linear performance
• Low distortion for superior audio output
• TO-264 package for effective heat dissipation
• Rugged, reliable, and durable construction
• Suitable for repairing amplifiers, UPS, inverters, and power supplies

Full Specifications

Electrical Specifications

• Transistor Type: PNP
• Manufacturer: ONSEMI (Original)
• Polarity: PNP
• VCEO (Collector-Emitter Voltage): 250V
• VCBO (Collector-Base Voltage): 250V
• VEBO (Emitter-Base Voltage): 5V
• IC (Collector Current): 16A
• IC Peak: 30A
• Power Dissipation (Pd): 200W
• DC Current Gain (hFE): 25–80 (at IC = 8A)
• Transition Frequency (fT): 4 MHz
• Collector–Emitter Saturation Voltage: Low, enhancing efficiency

Thermal / Mechanical Specifications

• Package Type: TO-264
• Operating Temperature Range: −65°C to +150°C
• Mounting Type: Through-hole
• Leads: 3-pin power transistor

Applications

• High-power audio amplifiers
• UPS and inverter circuits
• Power supply output stages
• High-current switching circuits
• Industrial motor control and power driver systems
